Quattra EH 1
External dimensions (W x H x D)
3.550 + 370* x 2.350 x 730 mm
Working dimensions of edge press
3.000 x 1.800 mm
(B x H)
Usable dimensions of frame press
2.700 x 1.800 mm
(B x H)
Art.-nr.: Q EH 001
External dimensions (W x H x D)
3.690 + 370* x 2.310 x 730 mm
Working dimensions of edge press
3.350 x 1.800 mm
(B x H)
Usable dimensions of frame press
3.050 x 1.800 mm
(B x H)
Art.-nr.: Q EH 001-L
* Width of the control cabinet
SINGLE-SIDED, STATIONARY, WITH ELECTROHYDRAULIC UNIT

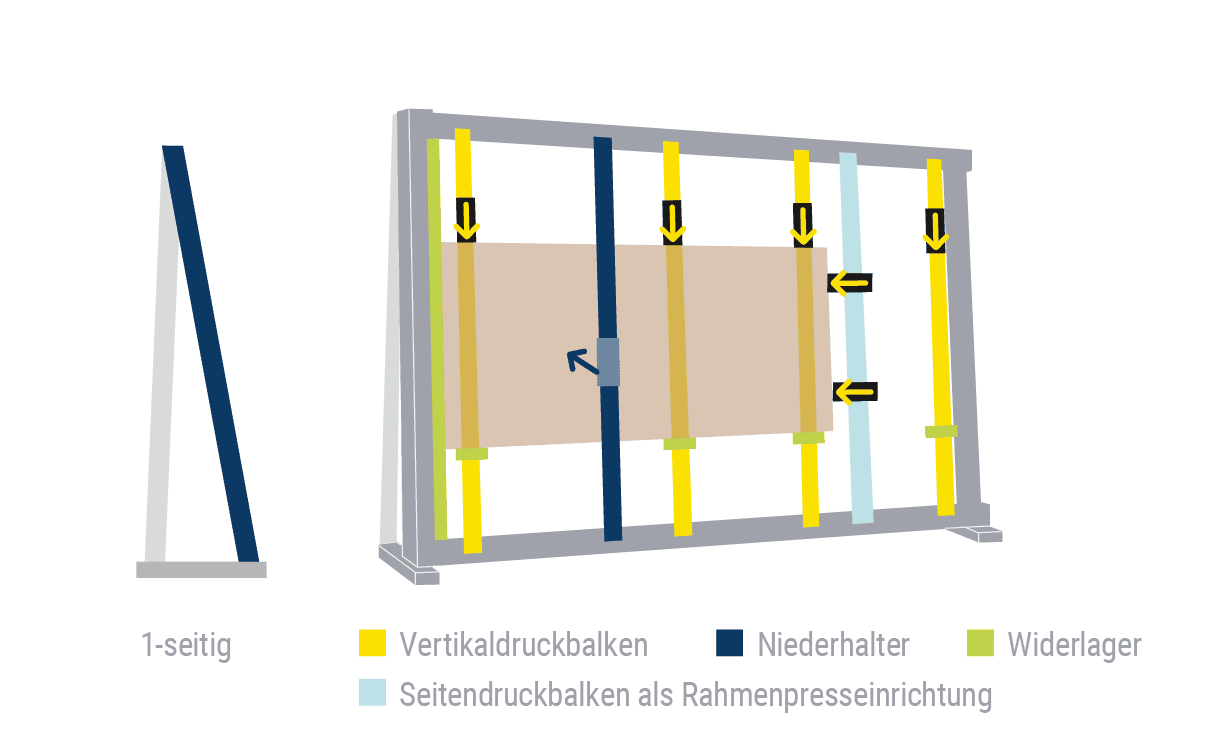

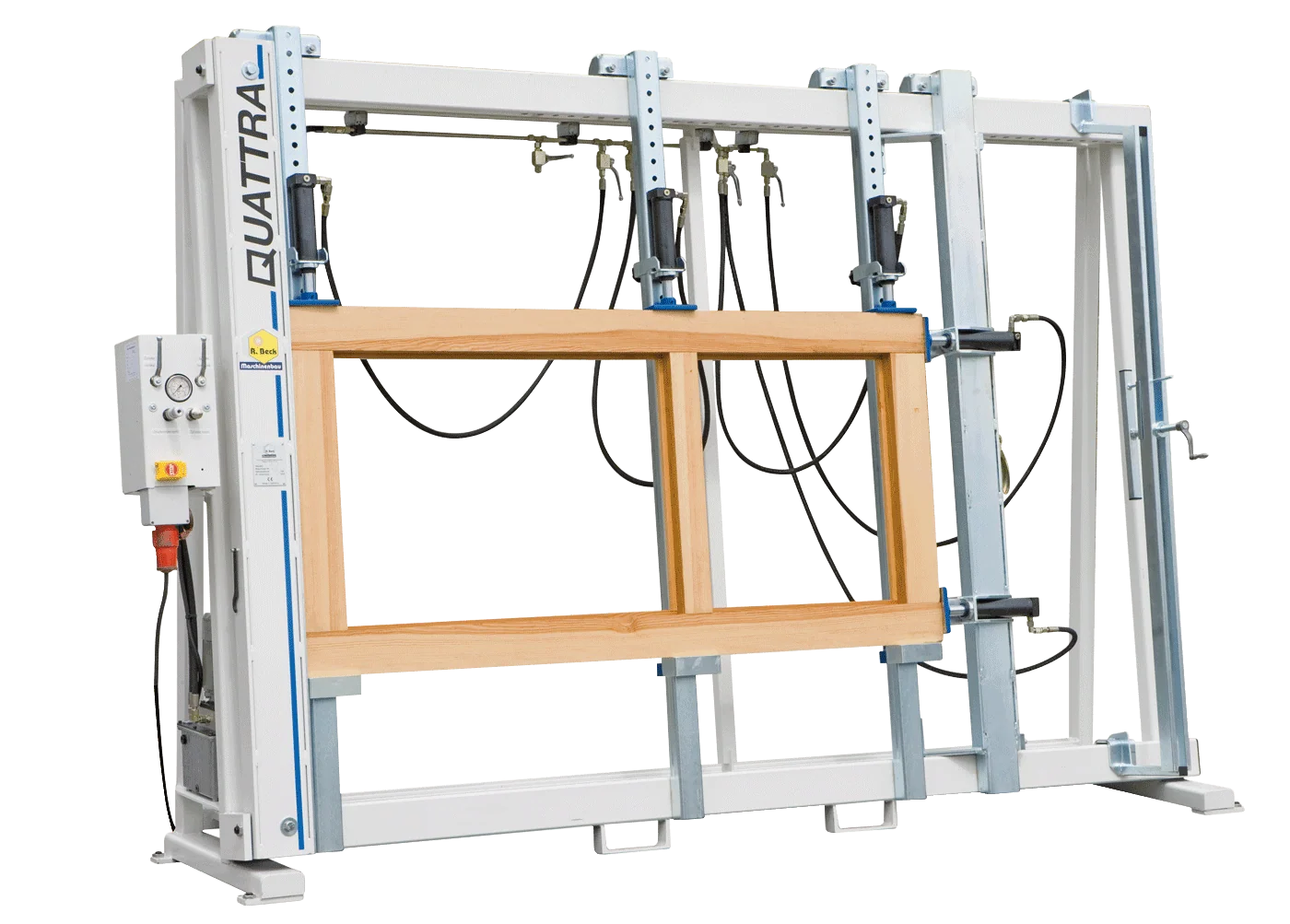

The QUATTRA EH gluing press with electrohydraulic unit (on the left side of the control panel) was also specially developed for pressing frames and edges. It consists of a sturdy frame construction made of thick-walled steel profiles. Freely movable vertical and side pressure beams accommodate the hydraulic press cylinders and the associated counter bearings.
| Stable welded frame construction | |
|
Powder-coated frame parts (glue-repellent) |
Gray-white RAL 9002 Pressure plate and abutment: Gentian blue RAL 5010 |
| Electrical connection | 230 / 400 V, 50 Hz |
| Quattra EH 1: | |
|---|---|
| Frame press device with continuous left abutment | |
| 1 sliding carriage for width adjustment with locking mechanism in 50 mm hole grid system, with central locking drive bolt | |
|
2 horizontally infinitely adjustable hydraulic cylinders: Pressing force Stroke |
20.000 N 70 mm |
|
3 roller-bearing, vertical pressure beams made of thick-walled profile tubing, electro-galvanized with 6-way adjustable lower abutment with safety catch and hydraulic cylinders (press units adjustable in 50 mm hole grid): Pressure force Stroke |
20.000 N 70 mm |
| Abutment and pressure plate | 140 x 80 mm (L x T) |
| 1 hold-down device, electro-galvanized for manual attachment with spindle pressure | |
Optional pendulum pressure plate
Additional vertical pressure beams possible
Additional hold-down devices possible
